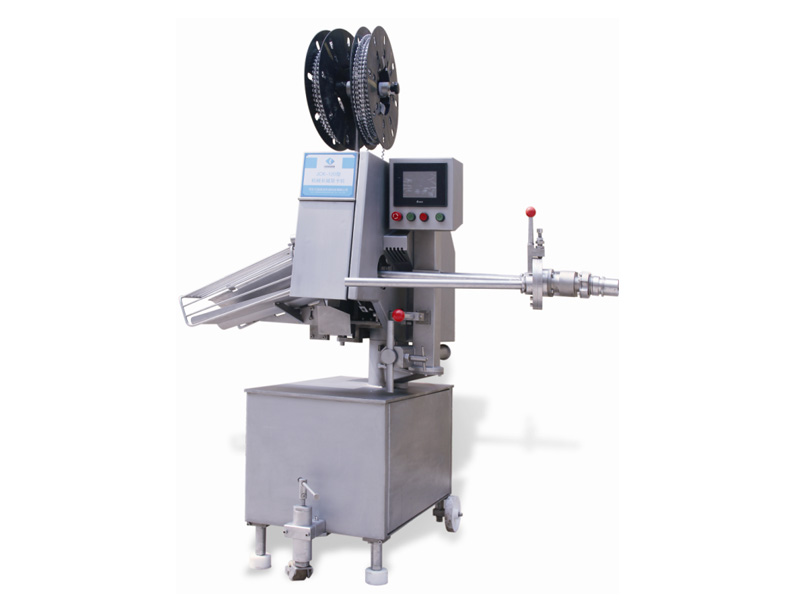

Automatic Double Clipper is connected mechanically and electrically to the any vacuum stuffer or pneumatic stuffer.The voiding separator provides portions of precise weight, which are clipped as single sausages or rings. Trend-setting safety standardsare guaranteed with the two-handed trigger operation required to start the first clip.
Automatic Double Clipper series built with the Japan Panasonic servo motor as the drive system, the man-machine interface fromTaiwan and the Japan Mitsubishi PLC. It is designed with the state-of-the-art forced wire-feed mechanism, featuring precise and clearaction.
Technical parameters:
| Model | Clip Speed(time/min) | Applicable Clip | Casing Range(mm) | Power(kw) | Voltage(v) | Weight(kg) | Size(mm) |
| JCK-120 | 120 | 15-6/15-7/15-8/15-9 | 32-90 | 2.7 | 380 | 370 | 980x880x1800 |
| JCK-130 | 100 | 15-6/15-7/15-8/15-9 | 32-130 | 2.7 | 380 | 420 | 1200x1320x2000 |
| JCK-160 | 80 | 18-6/18-7/18-8/18-9/18-10/18-11/18-12 | 50-160 | 3.5 | 380 | 960 | 1300x1360x2200 |
